Simple Green® Handheld Dispenser

AUTHORIZED RETAILERS

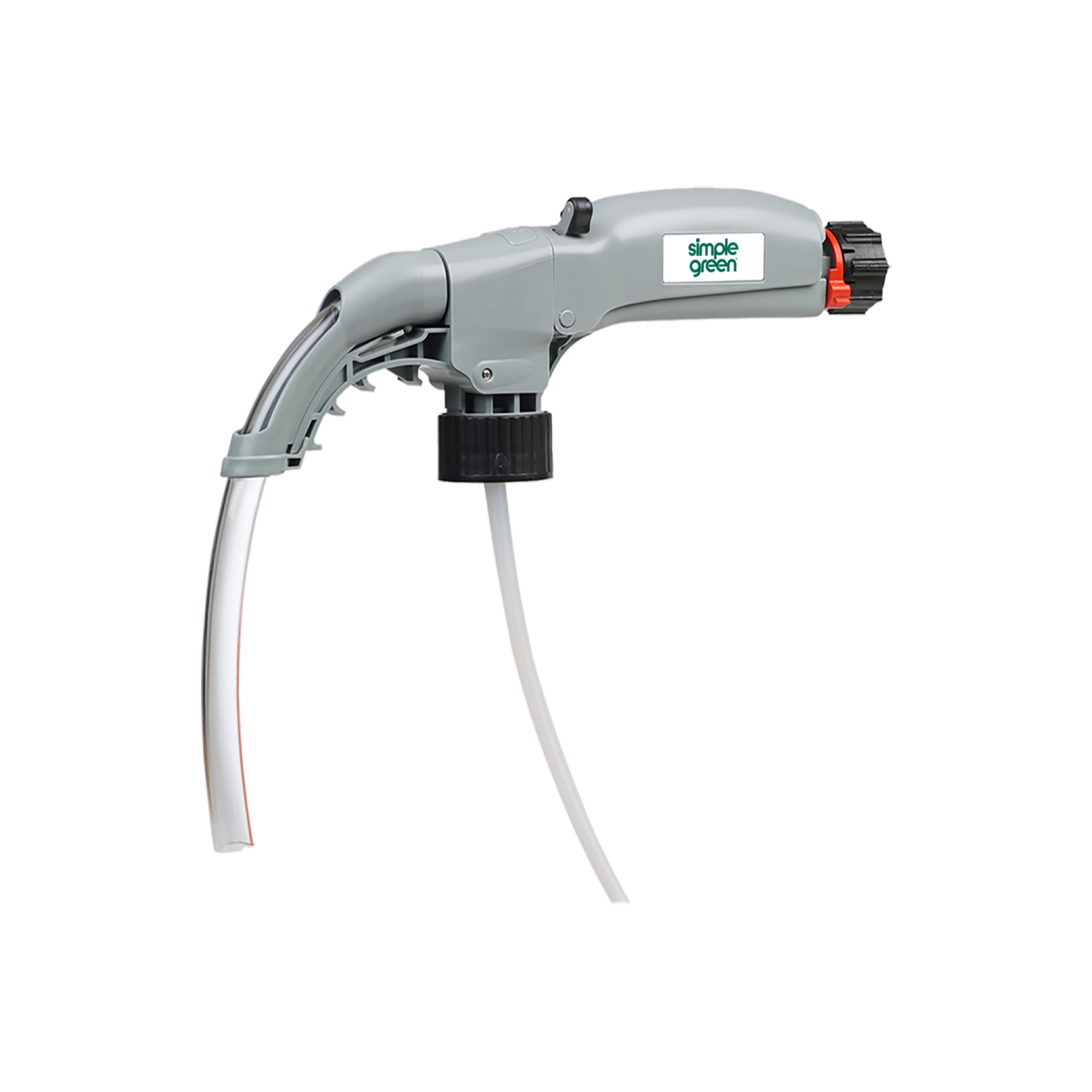

    Simple Green® Handheld Dispenser

    • Handheld DM1S2 portable proportioner hose-end dispensing system
    • Fills spray bottles, auto scrubbers, and mop buckets
    • Handheld dispenser features a 2.5 GPM flow rate
    • Ideal for locations where wall-mounted dispenser isn't pract
    WHERE TO BUY

    Simple Green DM1S2 multi-purpose, portable, hose-end dispensing system. A handheld proportioner to dilute cleaner, sanitizer, or other chemistry. Use where wall-mounted dispensers not possible. Fills buckets and bottles. Durable w/ a 2.5 GPM flow rate.

    • Includes 14 different sized field installed metering tips
    • Durable and rugged for long-lasting use
    • Easily connects to a standard 3/4" garden hose thread
    • Works with any open container with a 38mm neck
    • Comes with three draw tube lengths to fit common bottle sizes

    What You Need:

    • Metering tips (included with dispensing unit)
    • Small Phillips head screwdriver
    • Labeling stickers (optional)

    Directions:

    1. Remove the center housing cover by removing the screws on both sides.
    2. Next, remove screws from the metering compartment and carefully remove the metering tip holder.
    3. Select the metering tip for your desired dilution (refer to chart included with unit) and thread the tip into the holder.
    4. Replace the metering tip holder back into the unit and screw shut.
    5. Replace the housing cover and replace the screws to tighten.
    6. Optional: attach label sticker (included with unit) to identify which Simple Green concentrate you are using.
    7. Connect the unit to the chemical container and screw on tightly.
    8. Connect to water supply with a standard ¾" garden hose.
    9. Attach the hose to the Simple Green handheld dispenser.
    10. Rotate red lock ring to ‘Up’ position and turn on water.
    11. Squeeze handle trigger to dispense diluted, ready-to-use solution into bucket, spray bottle or foamer. Now you are ready to start cleaning with a ready-to-use solution!
